System overviewEngineered around your production requirement

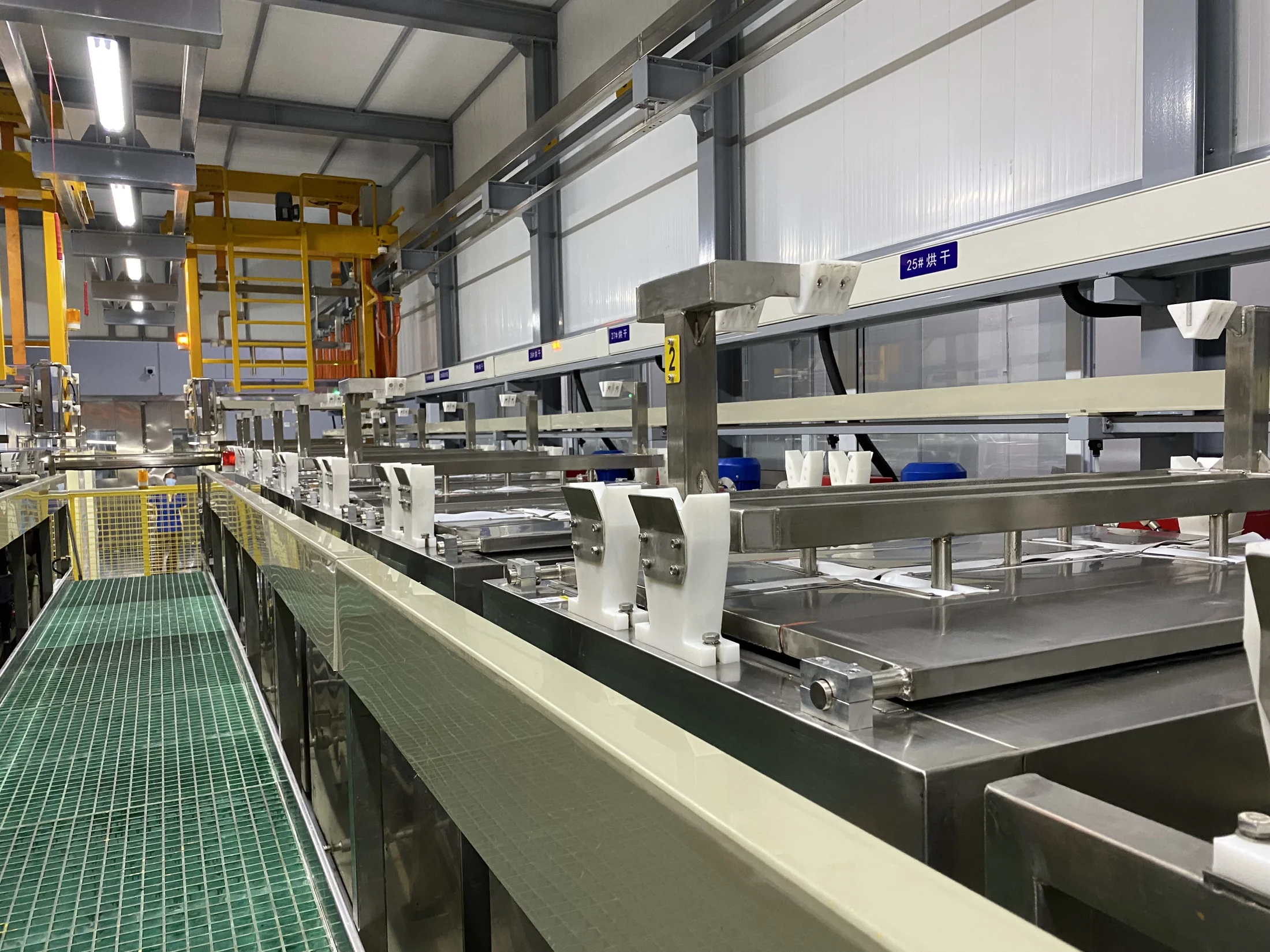

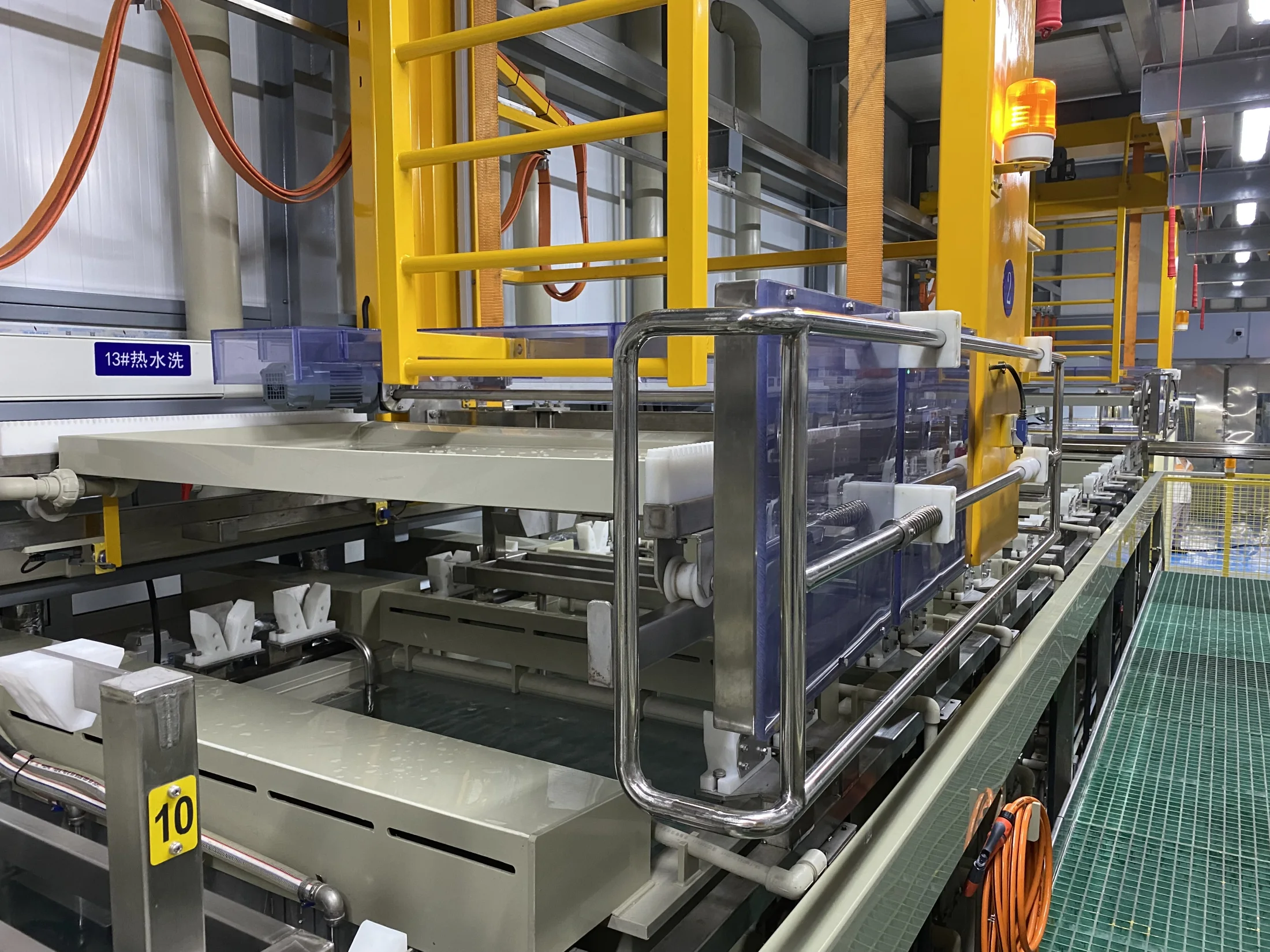

The Automatic Gantry-Type PVD Cleaning Line is engineered to deliver reliable and high-precision surface cleaning for components requiring PVD coating. The system combines multiple cleaning stages with an automated gantry transfer mechanism to ensure consistent processing quality and efficient material handling.

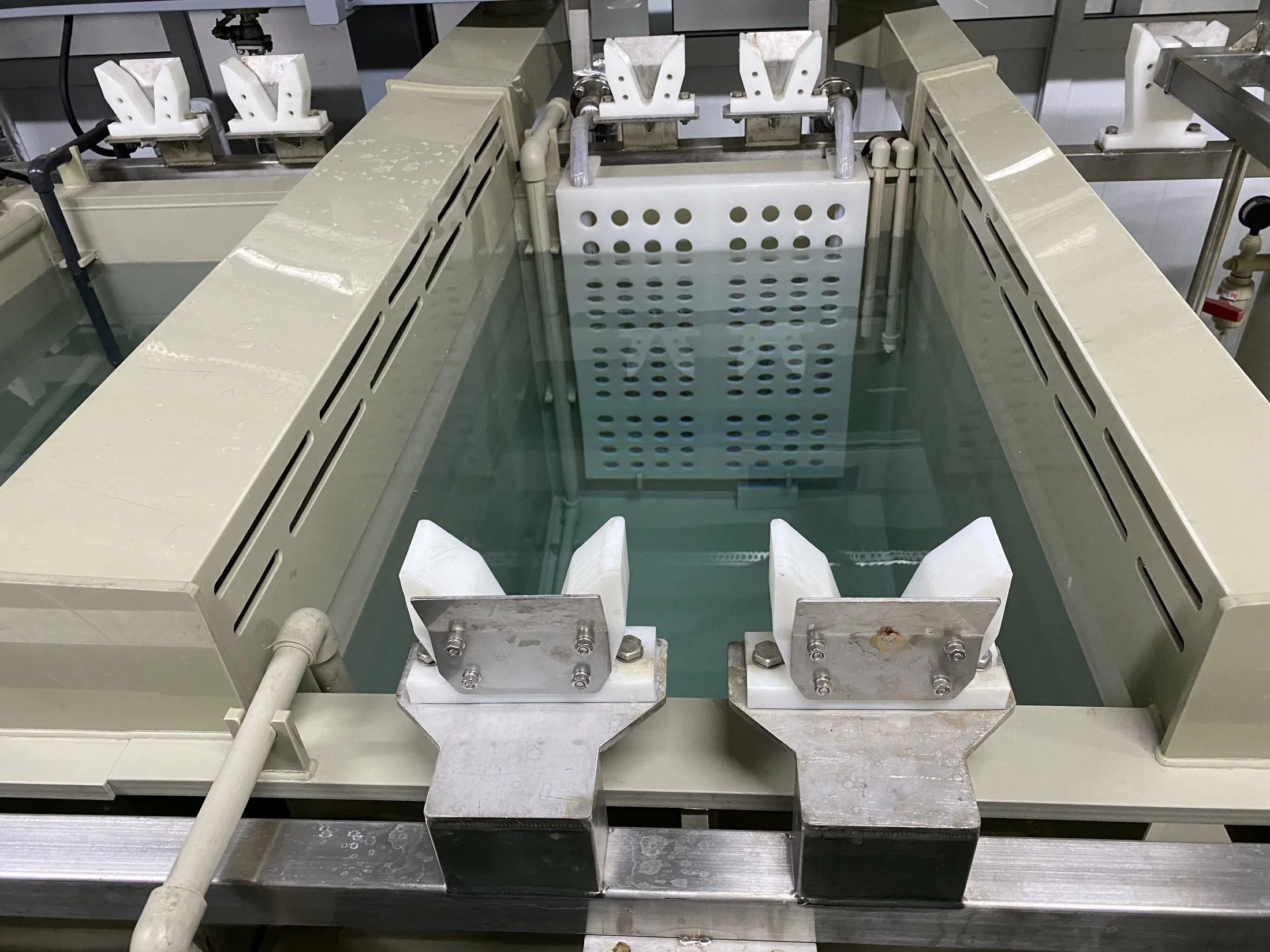

The cleaning process integrates ultrasonic alkaline cleaning, chemical activation, multi-stage counterflow rinsing, ultrasonic rinsing, and hot air drying to effectively remove oils, particles, chemical residues, and other surface contaminants.
The line can be customized according to product dimensions, material characteristics, cleaning requirements, production capacity, and available installation space. With programmable operating parameters, automated transfer sequences, and optimized water consumption, the system helps manufacturers improve productivity, reduce manual intervention, and maintain stable cleaning performance.
Designed for integration into precision manufacturing environments, the system provides a reliable cleaning solution for high-quality PVD coating preparation.
Typical process architectureProcess flow
Ultrasonic Alkaline CleaningWater RinsingChemical / Acid Activation3-in-1 Counterflow RinsingUltrasonic Rinsing 1Ultrasonic Rinsing 22-in-1 Counterflow RinsingHot Air Drying
The displayed flow is an engineering reference. The final sequence, chemistry, dwell time and control points are confirmed for the customer’s process.
ApplicationsWhere this system fits
The Automatic Gantry-Type PVD Cleaning Line is suitable for industries requiring high surface cleanliness and consistent preparation before PVD coating.
Automotive Industry: Cleaning of precision automotive components, decorative trims, and metal parts before PVD coating.
Consumer Electronics: Surface preparation for mobile phone components, electronic housings, and decorative metal accessories.
Hardware & Fasteners: Cleaning of metal fittings, handles, locks, and precision hardware components.
Medical Devices: Precision cleaning of compatible medical instruments and metal components requiring PVD surface treatment.
Aerospace Industry: Removal of machining oils, particles, and surface contaminants from high-precision components.
Tools & Mold Manufacturing: Pre-coating cleaning of cutting tools, molds, dies, and wear-resistant components.
Luxury & Decorative Products: Surface preparation for jewelry, watch components, sanitary fittings, and decorative products requiring high-quality PVD finishes.
