Automatic Gantry Hoist System configured for production capacity, process sequence, rack, jig or product handling matched to part geometry, utilities, safety and traceability requirements.
Final specification is developed after reviewing the product, process, capacity, plant layout, utilities and applicable standards.

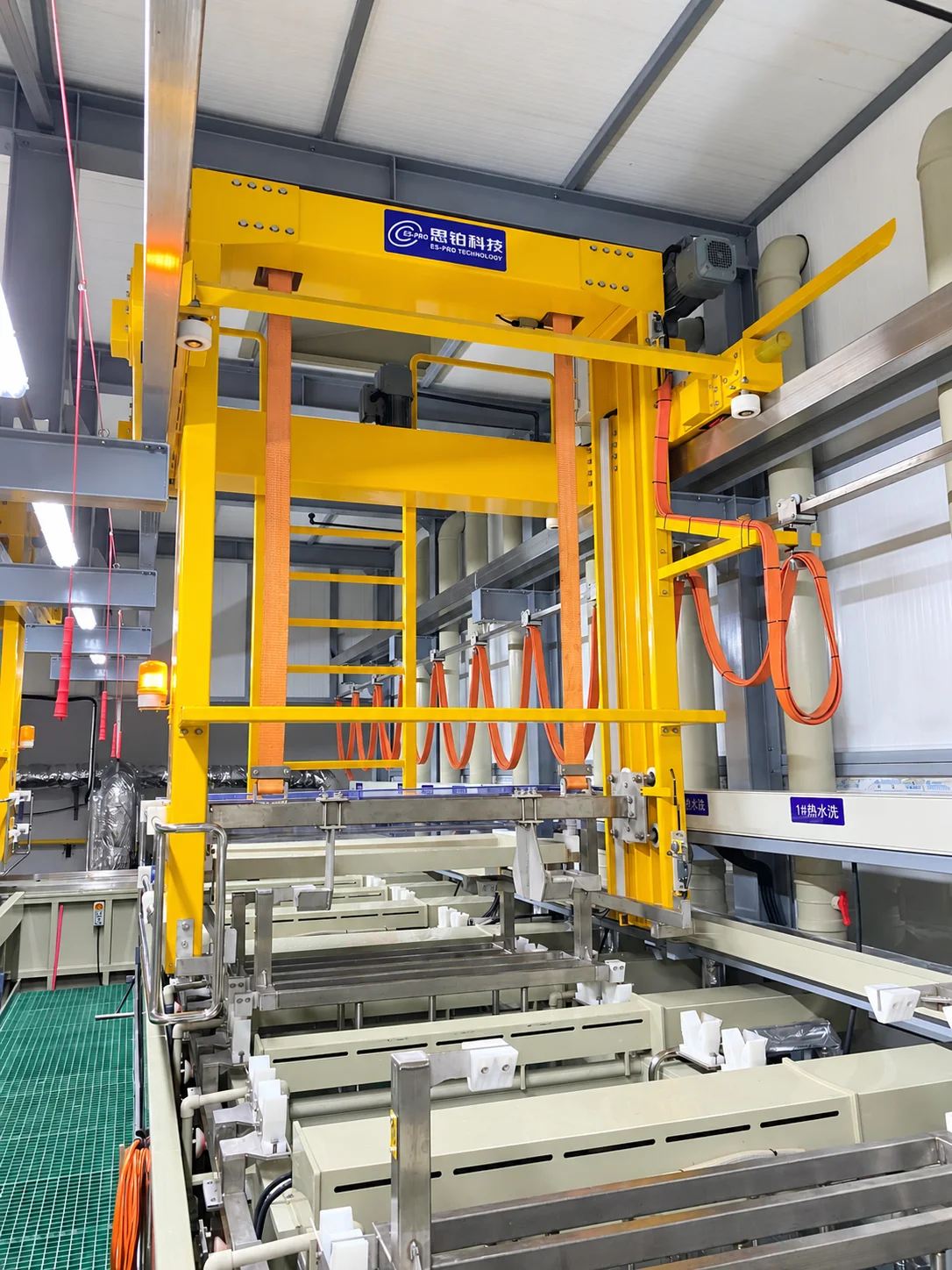

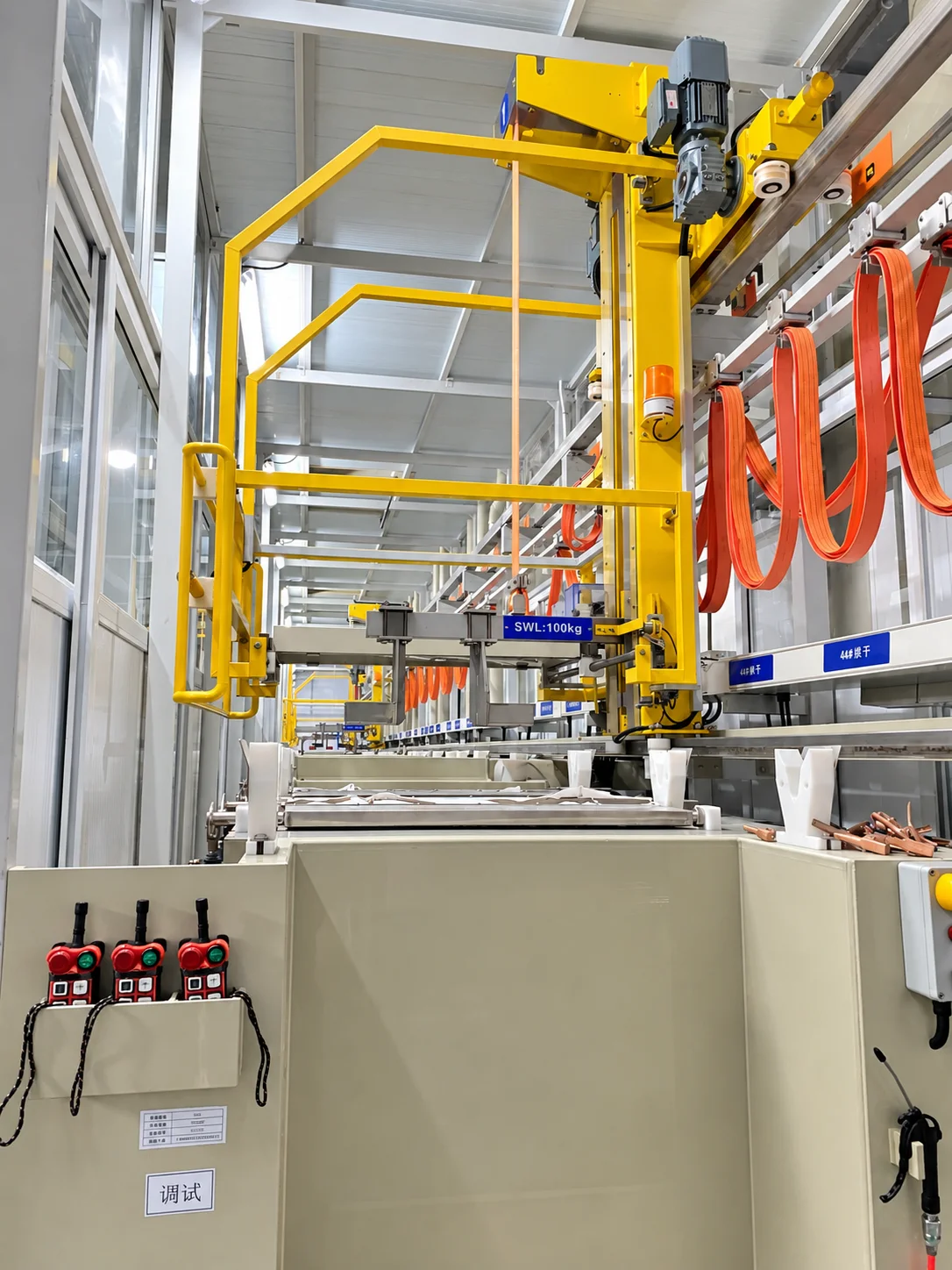

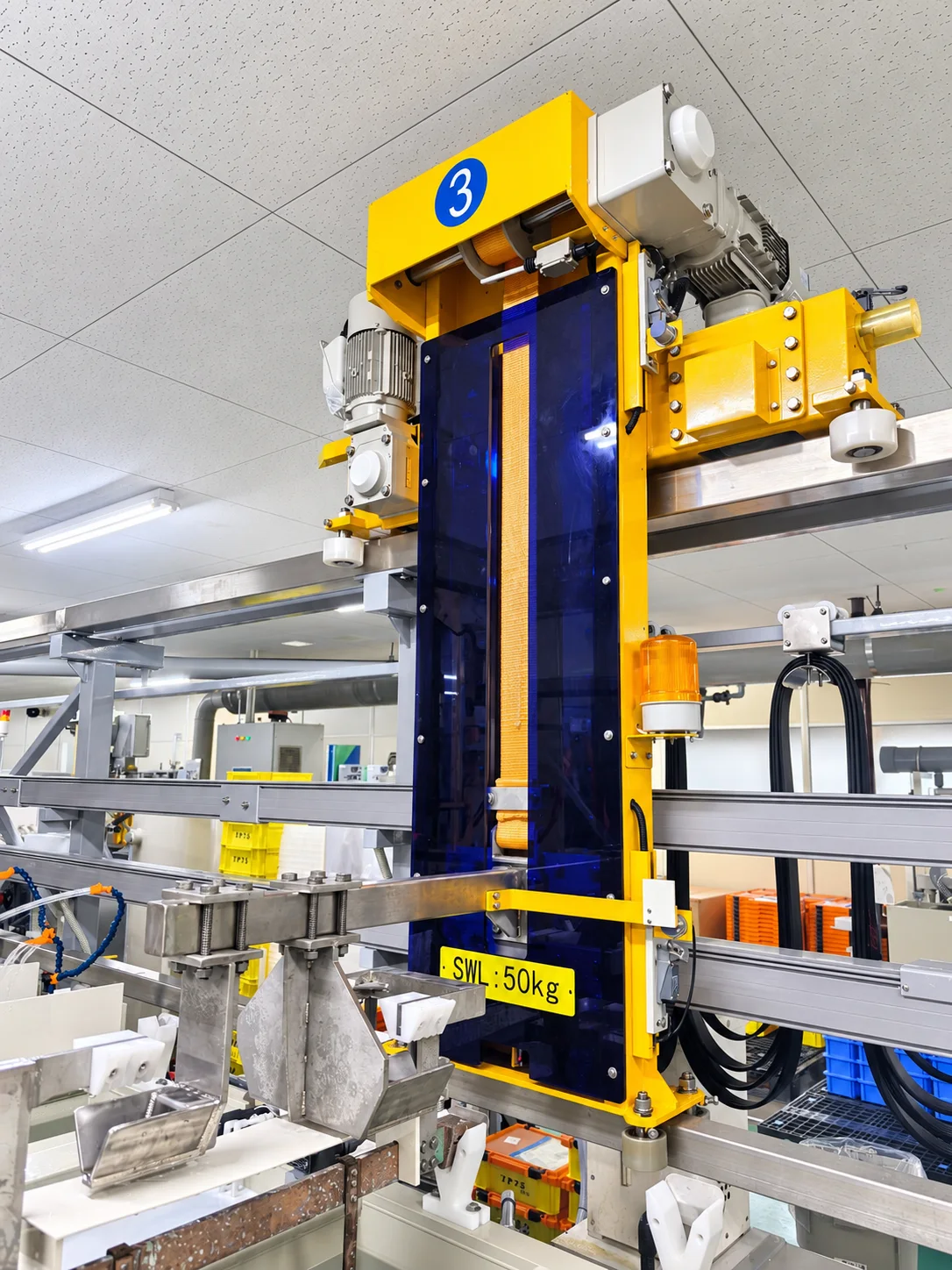

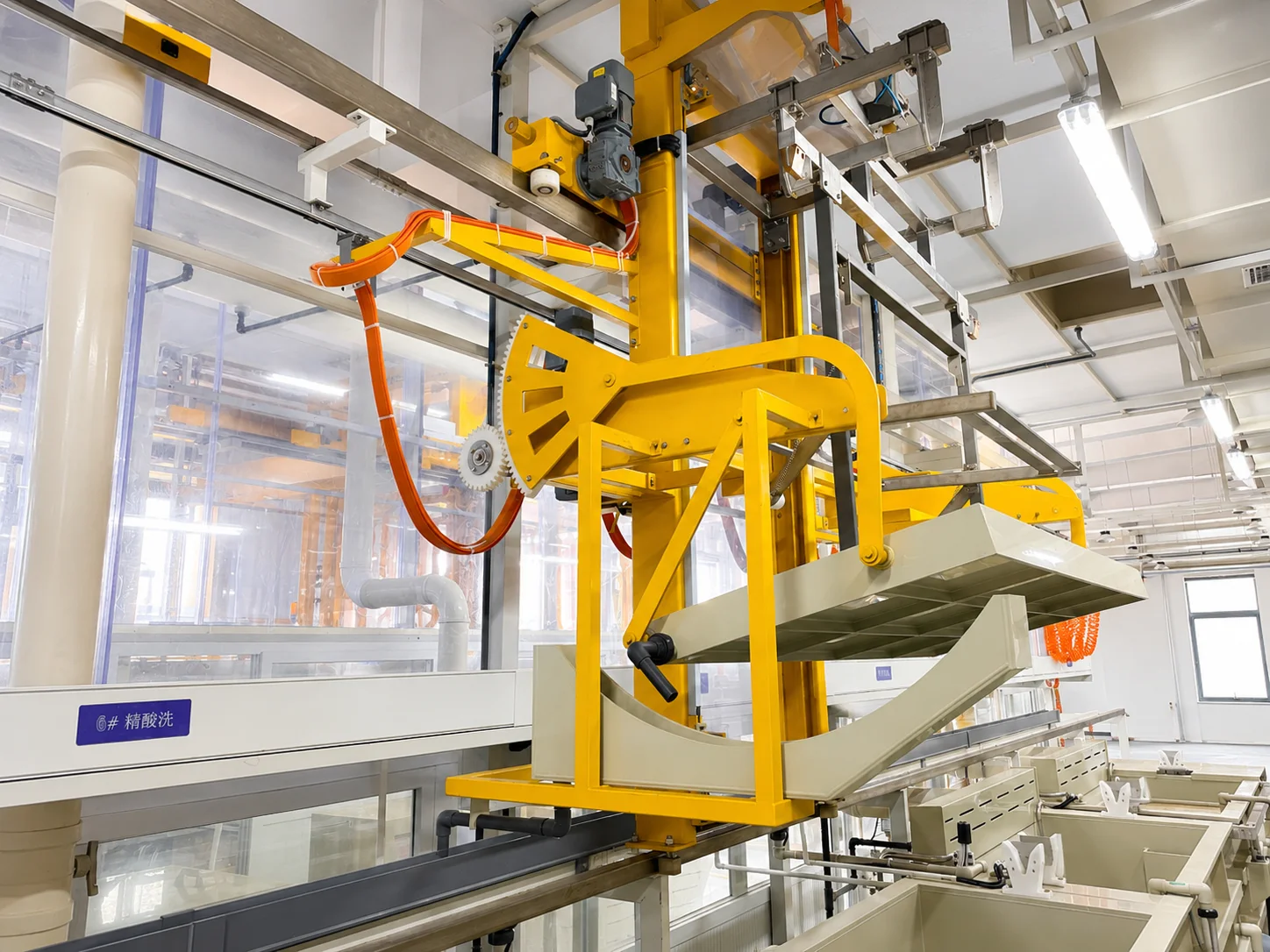

ES-PRO designs and manufactures Automatic Gantry Hoist Systems for electroplating, anodizing, chemical cleaning, and surface treatment lines. The system automates the lifting and transfer of workpieces between process tanks, ensuring precise positioning, consistent transfer timing, and reliable production flow.
Each system is customized according to tank layout, loading capacity, process sequence, and production requirements. Integrated with PLC and SCADA control systems, the gantry hoist supports automatic recipe execution, real-time position monitoring, collision prevention, and safety interlocks.
Designed for continuous industrial operation, the system reduces manual handling, improves process consistency, and enhances production efficiency while providing flexibility for future production expansion.
The displayed flow is an engineering reference. The final sequence, chemistry, dwell time and control points are confirmed for the customer’s process.
ES-PRO Automatic Gantry Hoist Systems are widely used in automated surface treatment lines requiring precise material handling, consistent processing times, and reliable operation.
Electroplating Lines: Automatic transfer of racks and workpieces between cleaning, plating, rinsing, and post-treatment tanks.
Anodizing Lines: Controlled lifting and transfer for conventional anodizing, hard anodizing, and sealing processes.
Chemical Cleaning Lines: Automated handling through degreasing, pickling, activation, and rinsing stages.
Electroless Plating Lines: Precise workpiece transfer for electroless nickel and other chemical deposition processes.
Metal Finishing Lines: Suitable for passivation, phosphating, stripping, and other surface treatment processes.
PCB & Electronic Component Processing: Automated transport for production processes requiring accurate positioning and consistent immersion times.
Automation SystemsES-PRO designs and manufactures automated transfer systems for electroplating, anodizing, and surface treatment lines, ensuring smooth and reliable movement of workpieces between processing tanks and production stations. Our solutions include gantry hoists, flybar transfer systems, conveyors, and automatic loading and unloading mechanisms. Integrated with PLC and SCADA controls, each system is customized to meet production capacity, tank layout, load requirements, and process sequences, helping reduce manual handling, improve transfer accuracy, and optimize overall production efficiency.
View system →
Automation SystemsFlybar Handling System configured for production capacity, process sequence, rack, jig or product handling matched to part geometry, utilities, safety and traceability requirements.
View system →
Automation SystemsAutomatic Loading and Unloading Systems streamline workpiece handling at the beginning and end of electroplating, anodizing, and surface treatment processes. Designed for seamless integration with gantry hoists, conveyors, and flybar transfer systems, these solutions enable efficient rack positioning, automated material transfer, and smooth production flow. Customized to accommodate different workpiece sizes, rack configurations, and production capacities, the systems reduce manual handling, minimize loading errors, improve operator safety, and enhance overall production efficiency.
View system →
Automation SystemsPLC and HMI Control Systems provide reliable automation and user-friendly operation for electroplating, anodizing, chemical cleaning, and surface treatment lines. The system integrates programmable logic controllers with touchscreen interfaces to manage equipment operations, process sequences, tank temperatures, rectifier settings, and automatic material handling. With real-time equipment monitoring, recipe management, alarm notifications, and safety interlocks, the system enables precise process control, simplifies troubleshooting, reduces manual intervention, and improves production consistency. Each solution is configured to match specific production requirements, equipment arrangements, and future automation needs.
View system →Share your process and project requirements with the ES-PRO engineering team.
