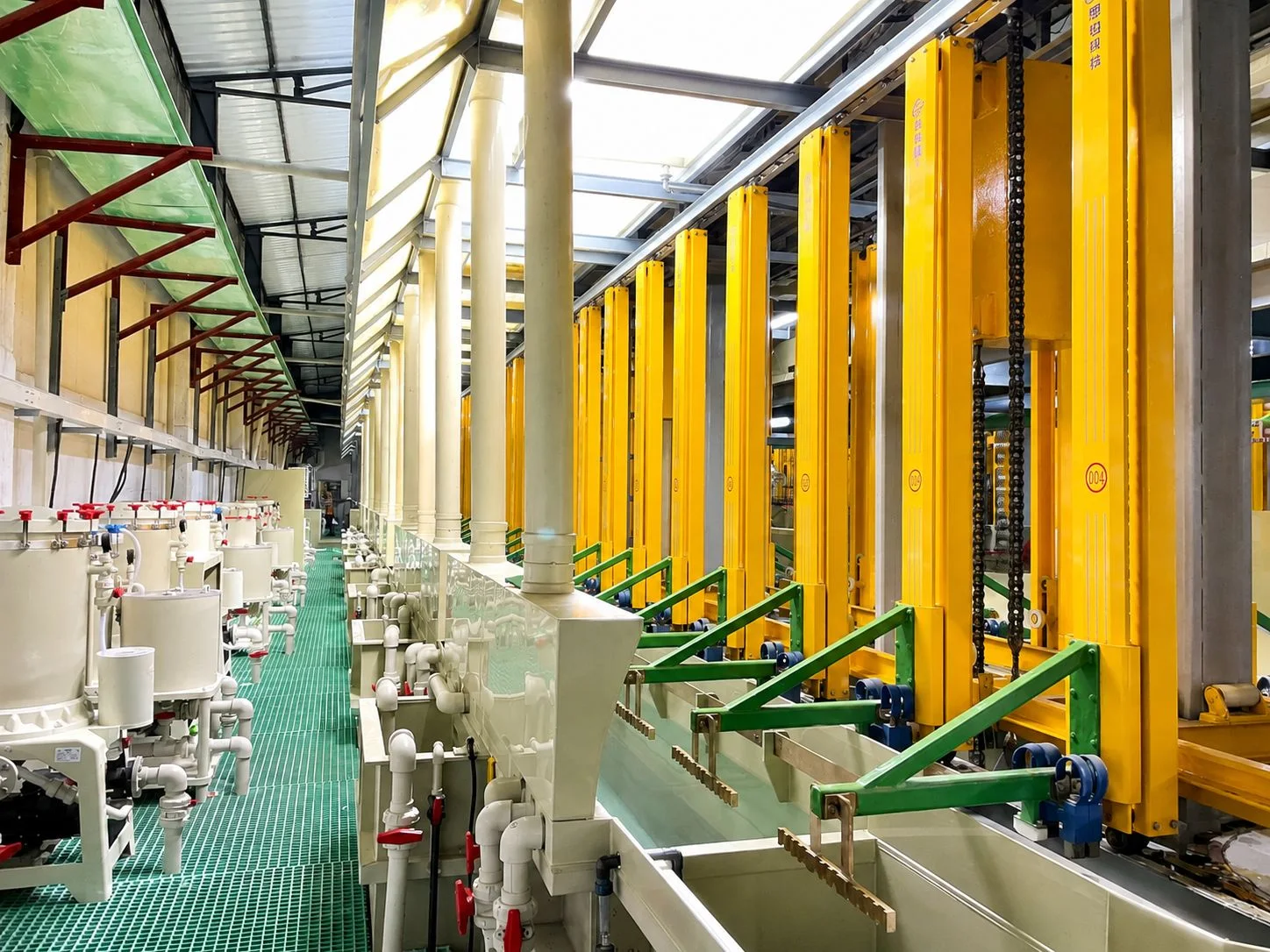

Vertical Continuous Plating Line configured for production capacity, process sequence, continuous material handling and stable tension, utilities, safety and traceability requirements.
Final specification is developed after reviewing the product, process, capacity, plant layout, utilities and applicable standards.
Vertical Continuous Plating Lines are designed for high-speed, continuous electroplating of strip materials and precision metal components where stable transport, uniform current distribution and consistent coating thickness are critical.
ES-PRO provides customized vertical plating systems integrating pre-treatment, continuous conveying, rectifiers, solution circulation, filtration, rinsing, drying and automatic process control. The line can be configured for copper, nickel, tin, silver, gold and other functional or decorative coatings according to material width, plating speed, coating thickness and production capacity.
The displayed flow is an engineering reference. The final sequence, chemistry, dwell time and control points are confirmed for the customer’s process.
Vertical continuous plating lines are widely used for high-volume products that require stable continuous processing, uniform coating thickness and precise plating control.
Copper and alloy strips
Electronic terminals and connectors
Lead frames
Precision stamped components
Battery and energy-related metal parts
Automotive electrical components
Semiconductor and electronic materials
Continuous strip products requiring copper, nickel, tin, silver or gold plating
